USB /RS232 /TTL to RS232 /485 /TTL Converter, Industrial Isolated Multi-Bus Adapter, Built-in Power Supply Isolation Digital Isolation Protection Circuits Support Windows 11 / 10/ 8.1/8 /7 /XP,etc

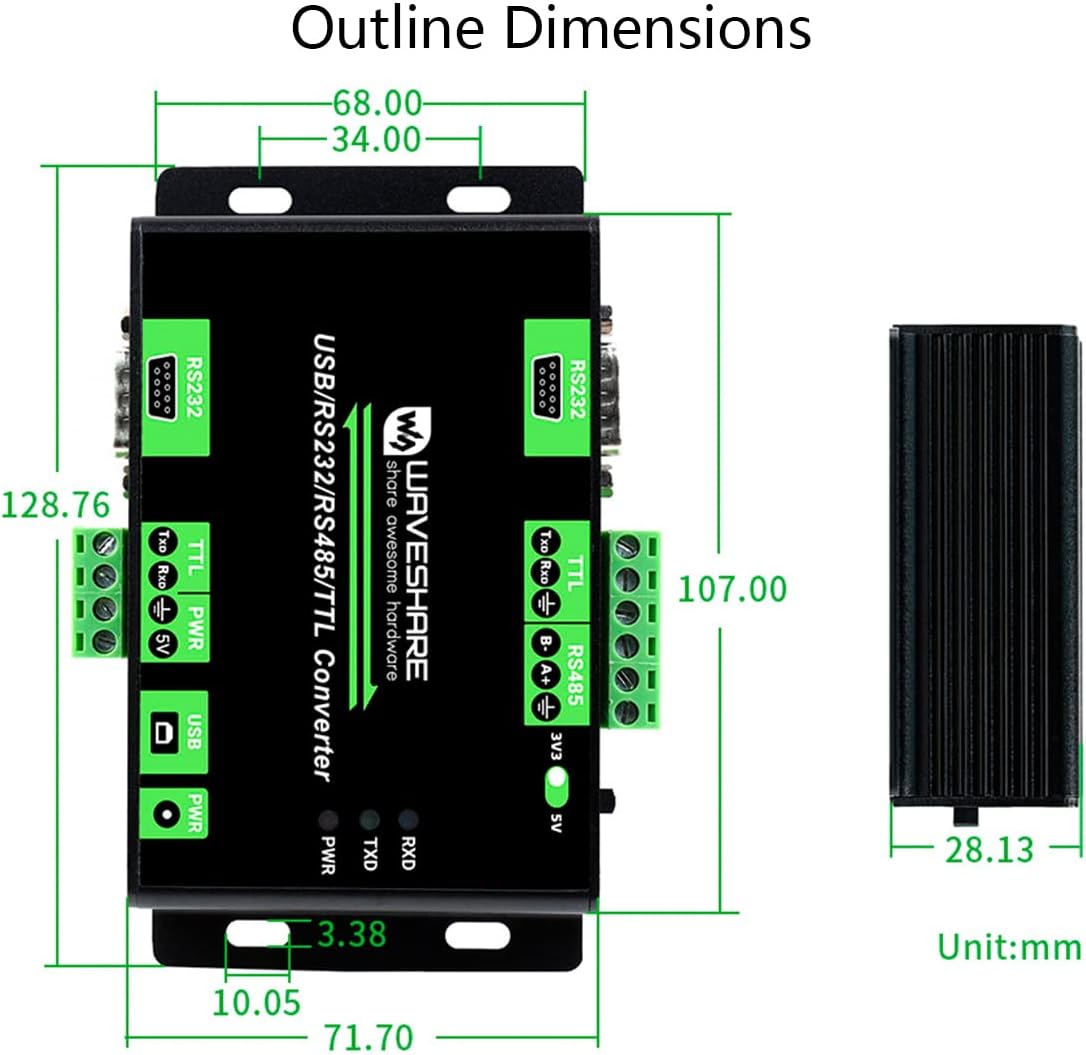

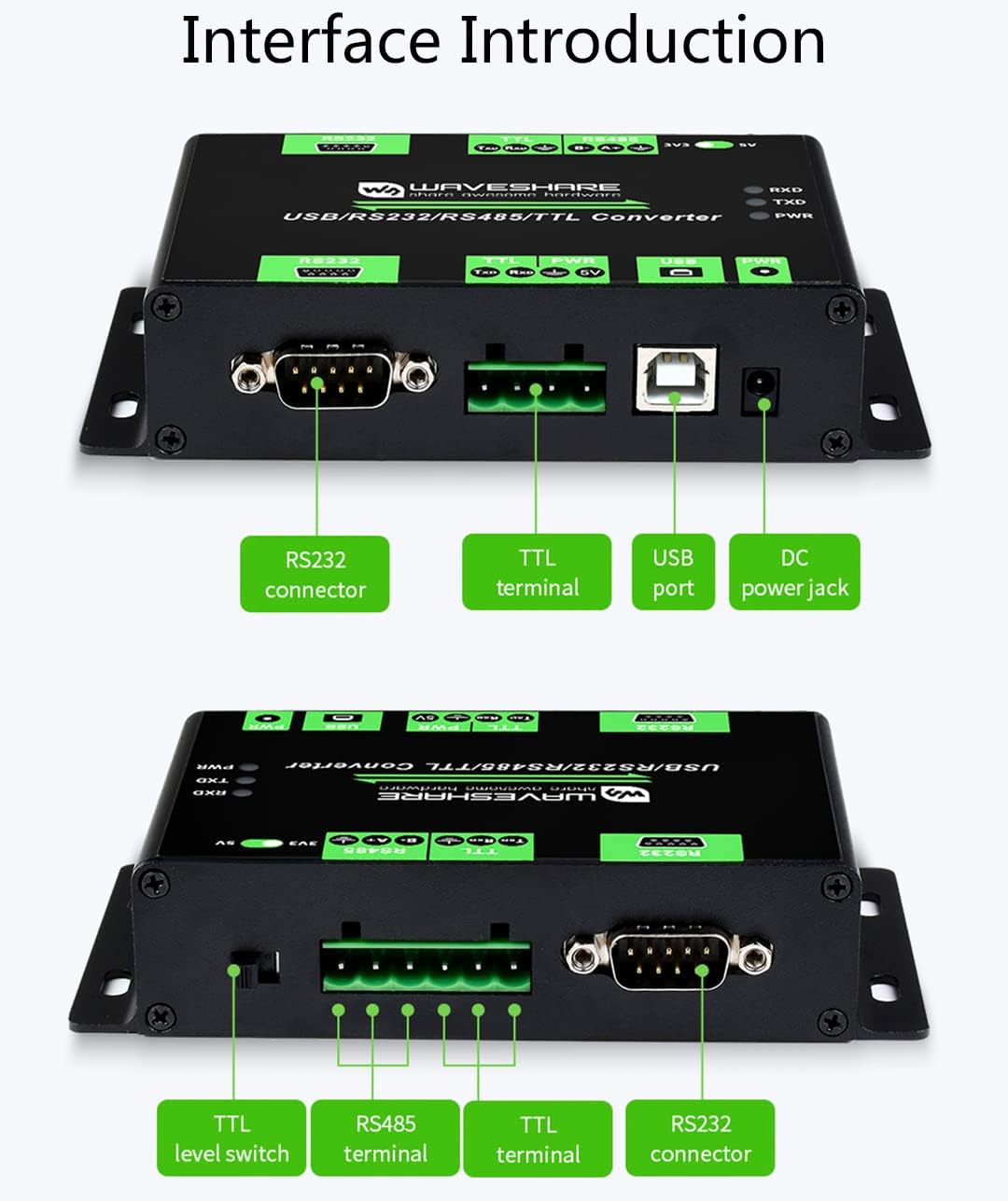

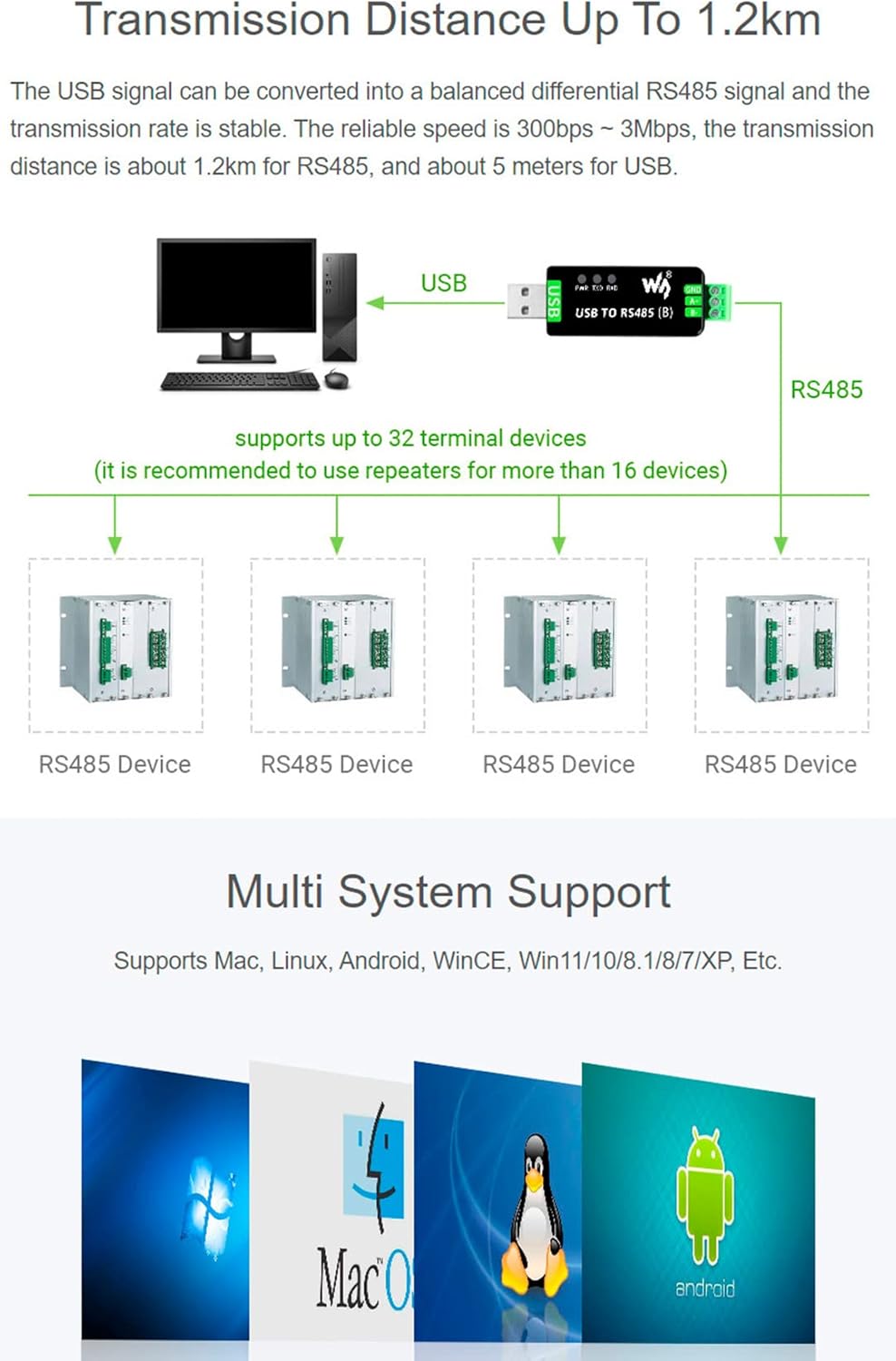

Features The USB/RS232/RS485/TTL Converter is an industrial grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and/or applications with high communication requirement. Specifications 1) Group A 1.USB Operating voltage--5V Connector--USB-B Protection--200mA resettable fuse, isolated output 2.RS232 Connector--DB9 male Protection--TVS protection, surge-suppress, ESD protection Transmission mode--point-to-point 3.TTL (UART) Operating voltage--5V Connector--screw terminal Pinout--TXD, RXD, GND, 5V Protection --clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jamproof 2) Group B 1. RS485 Connector--screw terminal Pinout--A+, B-, GND Direction control--hardware auto control Protection--lightningproof, surge-suppress, ESD protection Transmission mode--point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) 2.RS232 Connector--DB9 male Protection--TVS protection, surge-suppress, ESD protection Transmission mode--point-to-point 3.TTL (UART) Operating voltage--3.3/5V Connector--screw terminal Pinout--TXD, RXD, GND Protection--clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jamproof Operating environment Temperature:-25℃ ~ 85℃ Humidity: 5%RH ~ 95%RH OS support: Windows 11 / 10 / 8.1 / 8 / 7 / XP NOTE: only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time Online Tutorial: n9.cl/215yf Package Content USB/RS232/RS485/TTL Converter x1 USB cable (~1.2m) x1

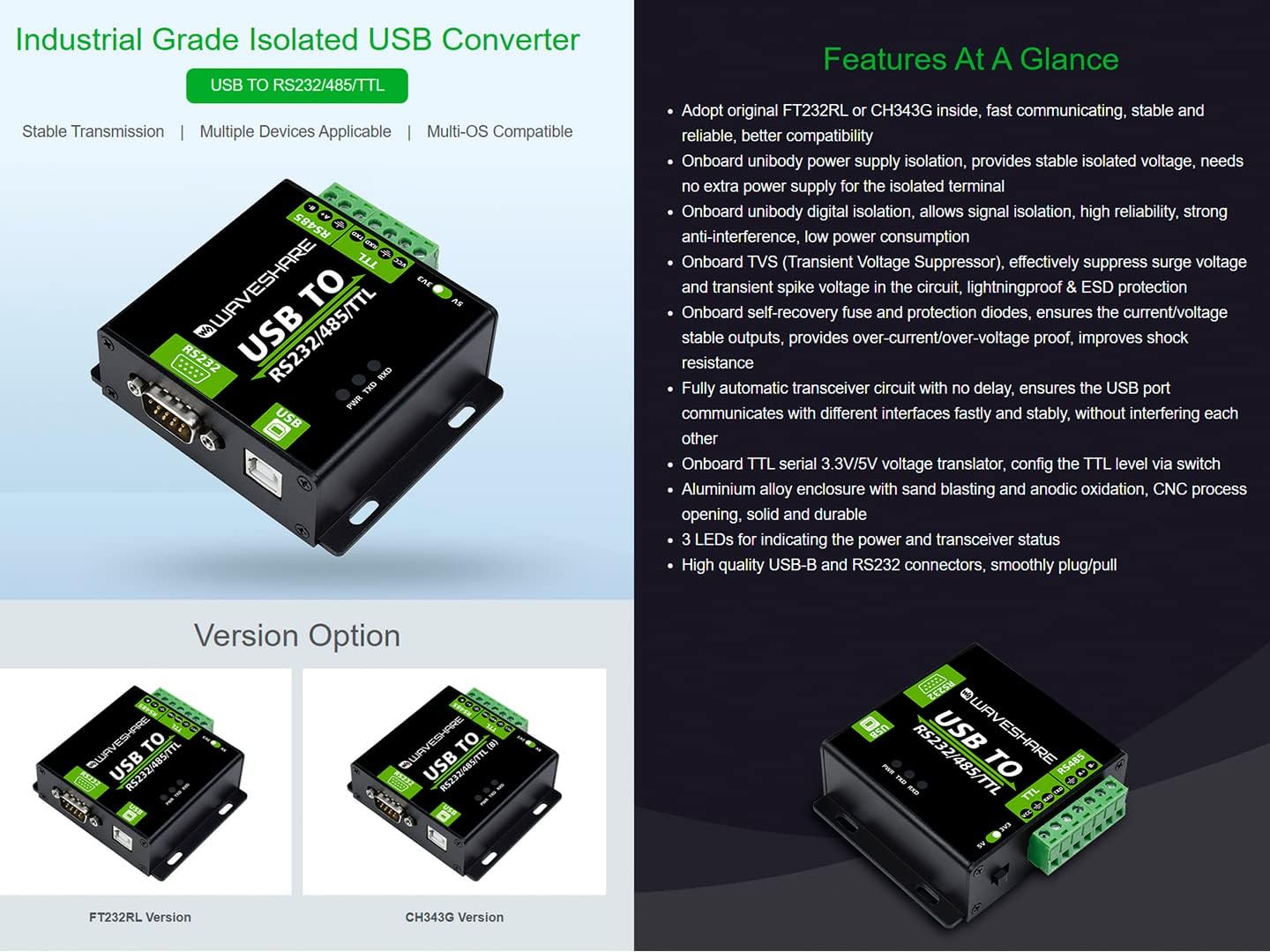

• The Multibus Converter is an industrial grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL.Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility.
• Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal). Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption.
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance. Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal.
• Multi-protocol Multi-bus conversion. Operating status Indicators: 3x LED indicators for easily checking power connection and signal TX/RX statuses. Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable.
• Online User Manual/Document: n9.cl/215yf
